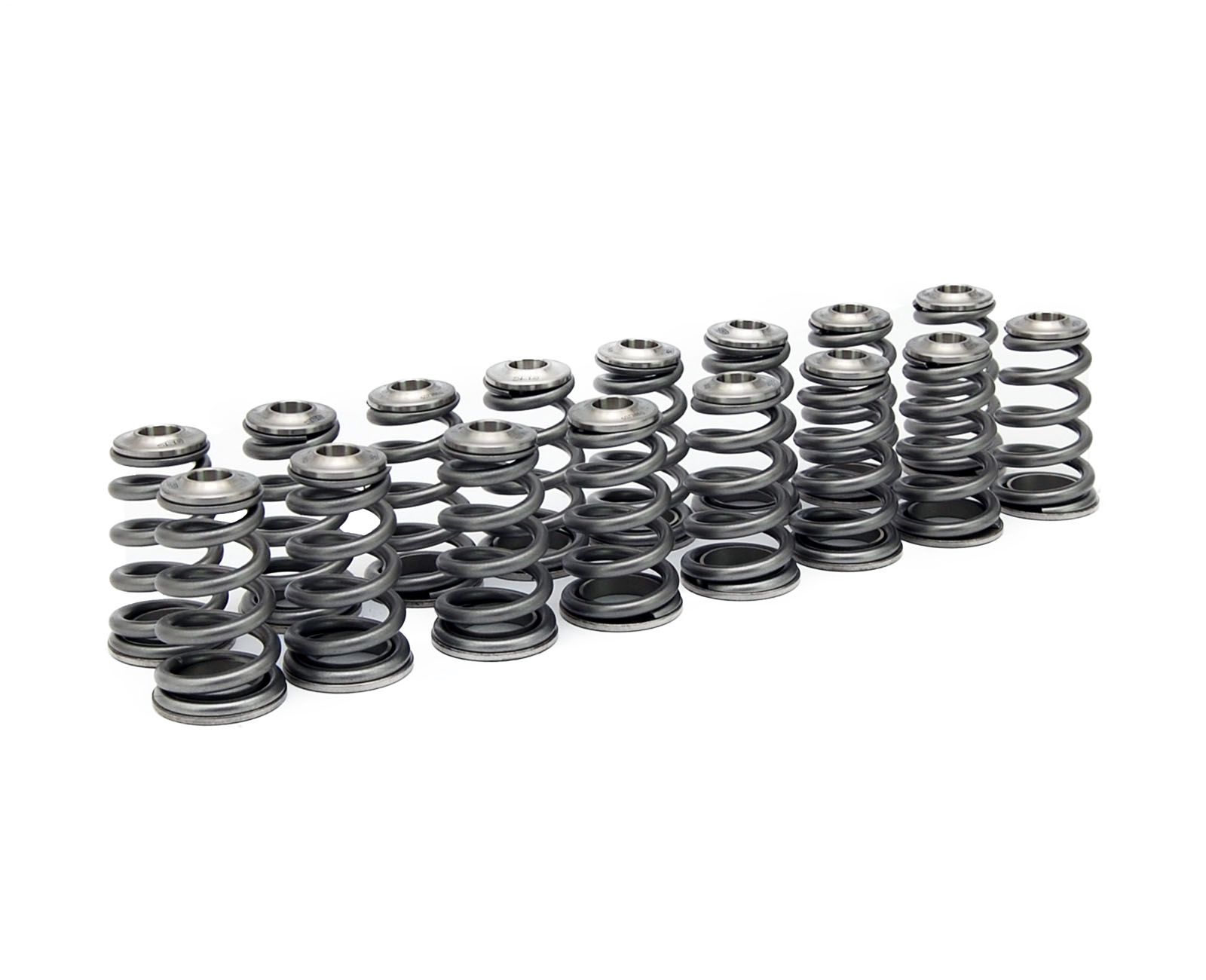

FUJI – Supreme Valve Spring & Titanium Retainer Kit

Description

SUPREME FUNCTION.

The Fuji Racing Supreme valve springs are not a new concept and are industry proven to provide several key advantages over traditional spring designs. A major advantage of our conical springs is the damping and removal of valvetrain harmonics. Of the three industry designs, conical springs are the front runners in valvetrain harmonic stability. Utilizing a varying coil diameter as well as coil spacing, a conical spring acts as a natural harmonic damper in the transfer of valvetrain shock. This translates to less stress, less wear, and longer life of the included components. This level of protection is needed in todays engines being pushed to their physical and mechanical limits by aftermarket modifications. Every Fuji Racing Supreme spring offers a super finished surface treatment to go along with the patented, multi-step heat treatment process. The finished product is an extremely reliable, high-performance spring allowing the users to push higher RPMs, use more aggressive cam profiles, and turn up higher boost pressures. Complete with Titanium retainers & Chromoly spring Seats

Details.

MAX RPM 10,000RPM
Max Boost 3.4BAR
Maximum LIft 0.453″
Open Pressure, 11.50mm lift 259lbs @ 0.850″
Seat Pressure (lbs) 109
Install Height (in) 1.303
Coil Bind (in) 0.818

Suitable for the following models:

– Subaru EJ20/EJ22/EJ25 Engines From 1998 Onwards
If you are unsure of fitment or application then please contact us with your vehicles chassis number.

WHAT’S IN THE KIT:

– 16x Beehive Valve Springs
– 16x Titanium Retainer
– 16x Chrome Moly Spring Seats

Item‘s condition: Brand new (www.fujiracing.com)

Delivery: worldwide shipping possible for further information get in touch with us.
