FUJI – Max Grip Timing Belt Guide

Description

KEEP ON TRACK.

When running high RPM and under heavy geared braking the timing belt can “jump” and potentially skip a tooth causing the engine timing to go out of sync. This can have disastrous consequences and can result in excessive damage to the valve train.

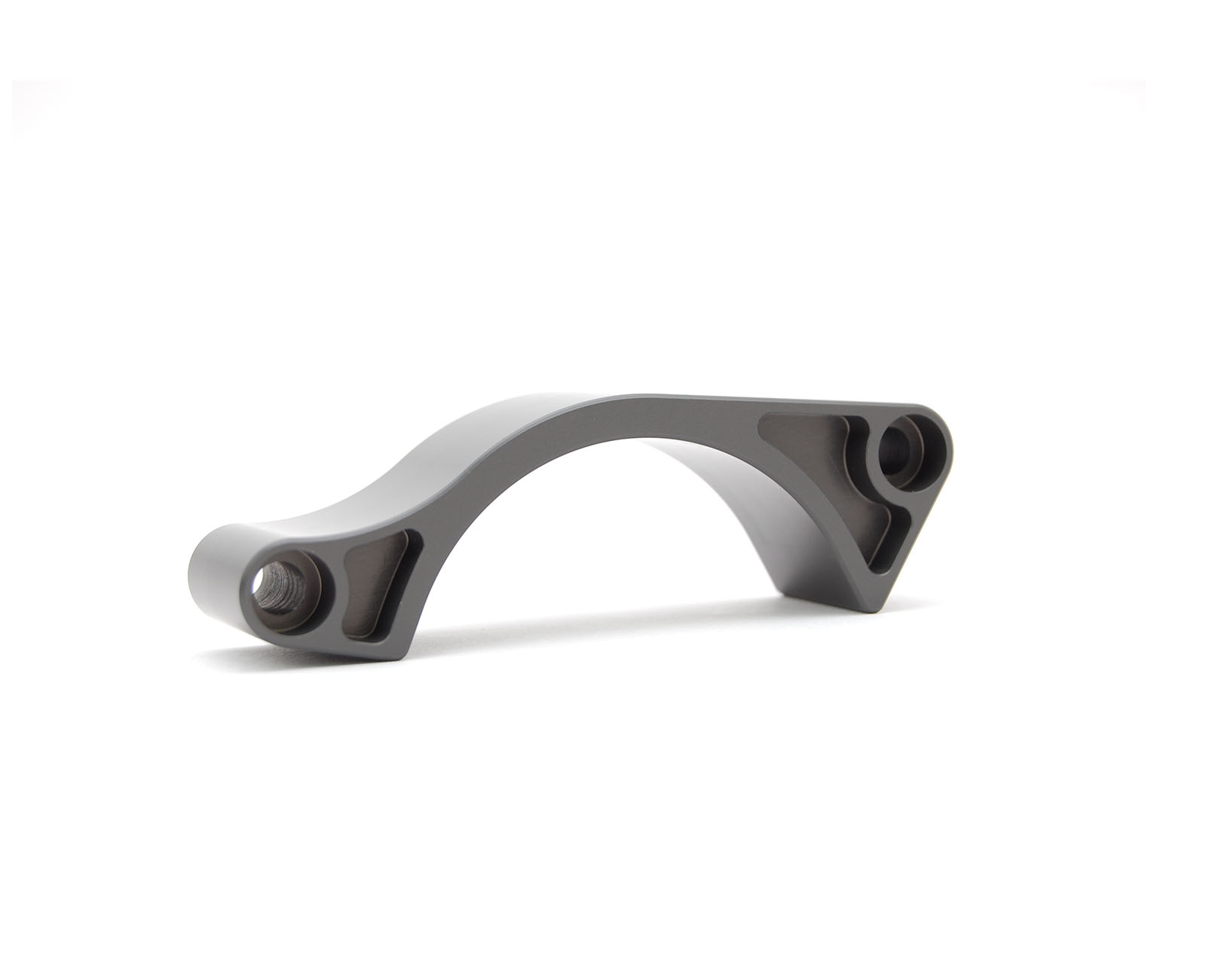

The Fuji Billet Timing Belt Guide is a direct replacement for the existing much frailer, thinner guide (found on the EJ series from factory).

It has been specifically designed to closely hug the timing belt and provides a much sterner buffer should the timing belt attempt to jump away from the toothed crank pulley.
IT’S ALL ABOUT PRECISION.

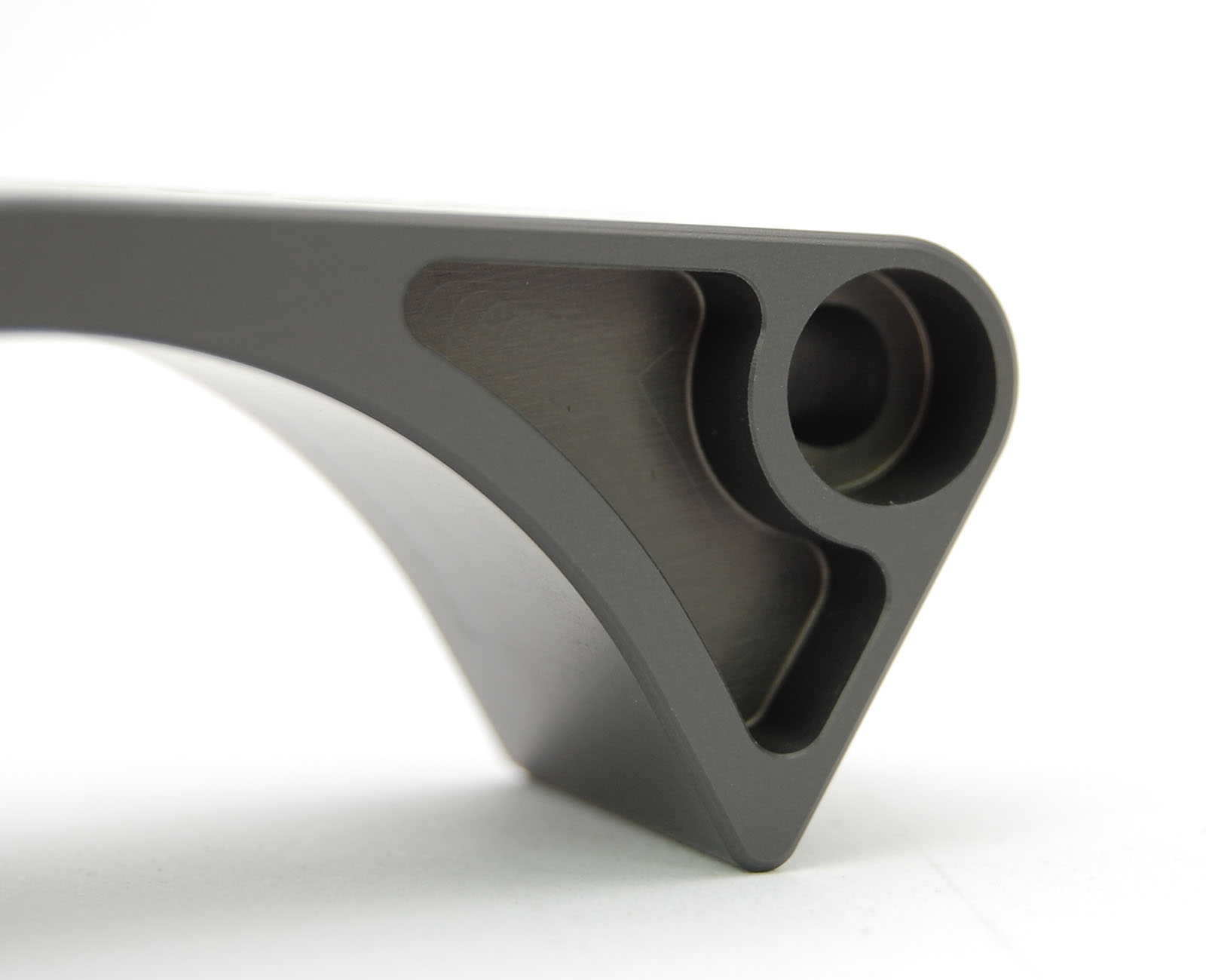

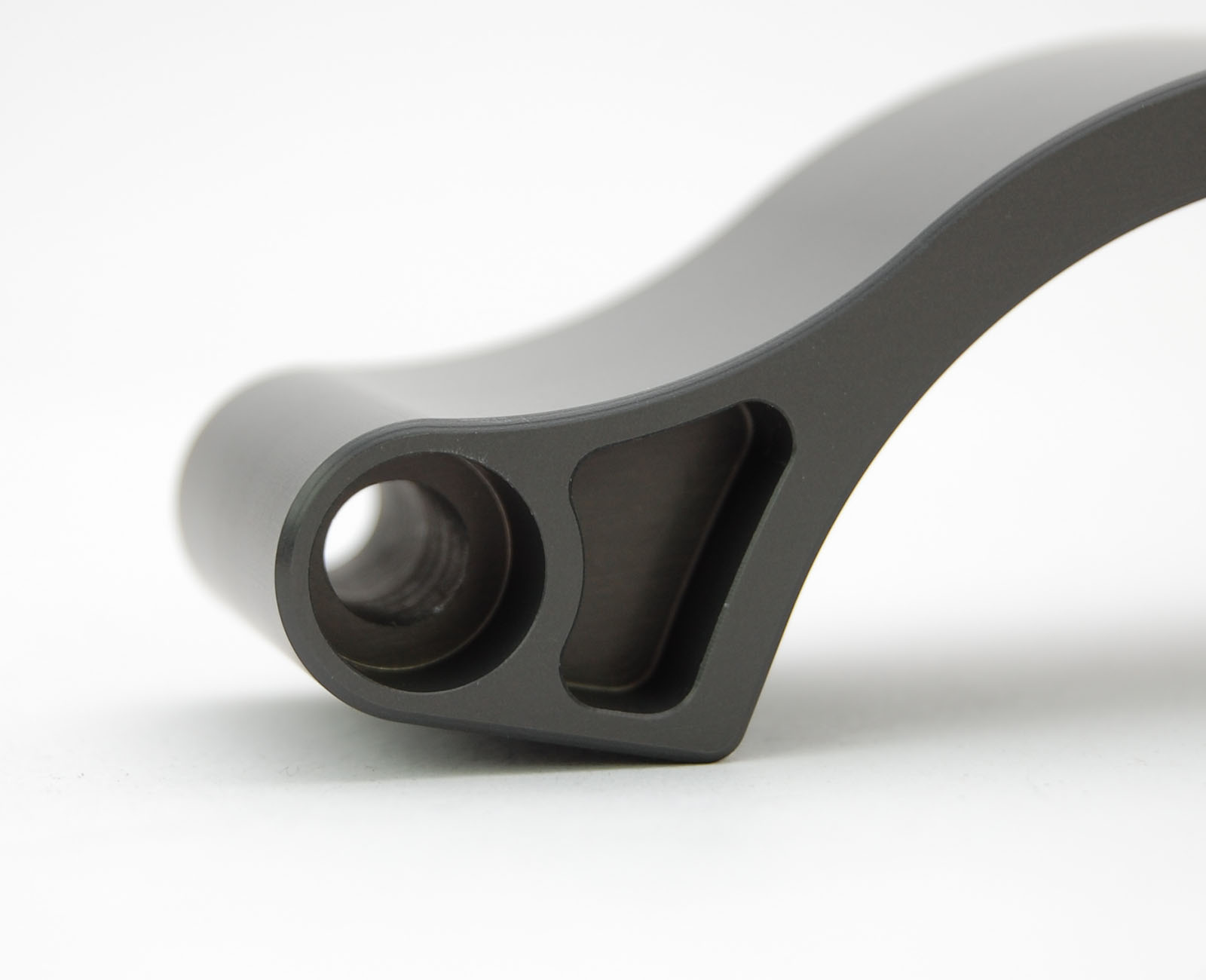

Measured to give perfect clearance between the timing belt and inner surface of the belt guide, each Fuji Timing Guide has been precision machined to specification, ensuring your timing belt guide will remain firmly placed over the crank pulley no matter the trial.

Machined from T6082T6 aluminium our guides are each hand polished before being hard anodised in our new WRC colour

Supplied complete with the necessary stainless steel retaining bolts, the Fuji timing guide is a must for any performance engine.

Suitable for the following models:

– Subaru Impreza Turbo 1992 – 2015
– Subaru Forester Turbo 1996 – 2012
– Subaru Legacy Twin Turbo 1993 – 2003
– Subaru Legacy Twin Scroll 2003 – 2009
– Subaru WRX STi 2015+
If you are unsure of fitment or application then please contact us with your vehicles chassis number.

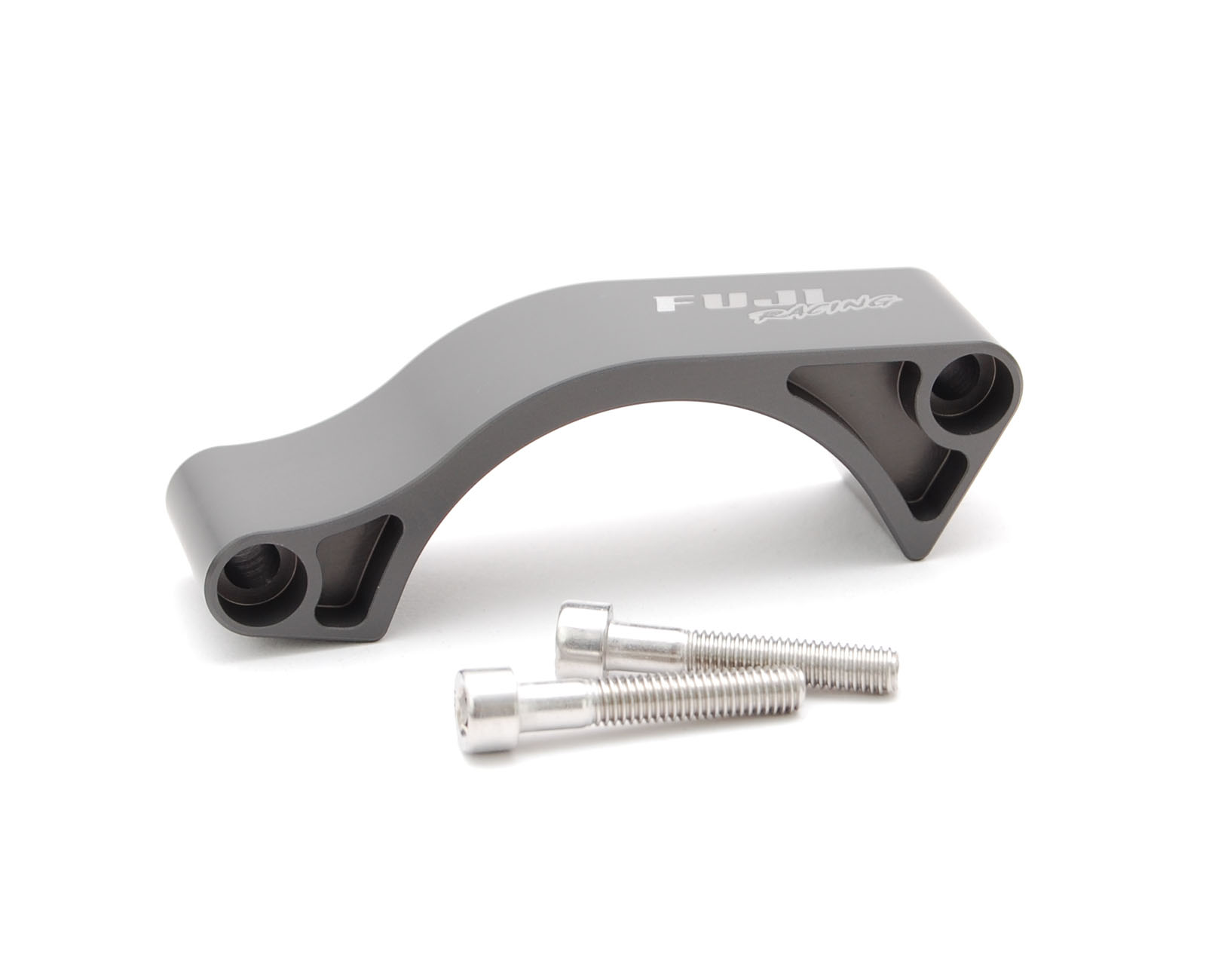

WHAT’S IN THE KIT:

– 1 x Machined Timing Belt Guide.
– 2 x Stainless Steel Mounting Bolts.

NOTES:
We recommend utilising a small amount of thread lock on each bolt when installing.

Torque bolts to 25Nm (18ft-lb).

Item‘s condition: Brand new (www.fujiracing.com)

Delivery: worldwide shipping possible for further information get in touch with us.
